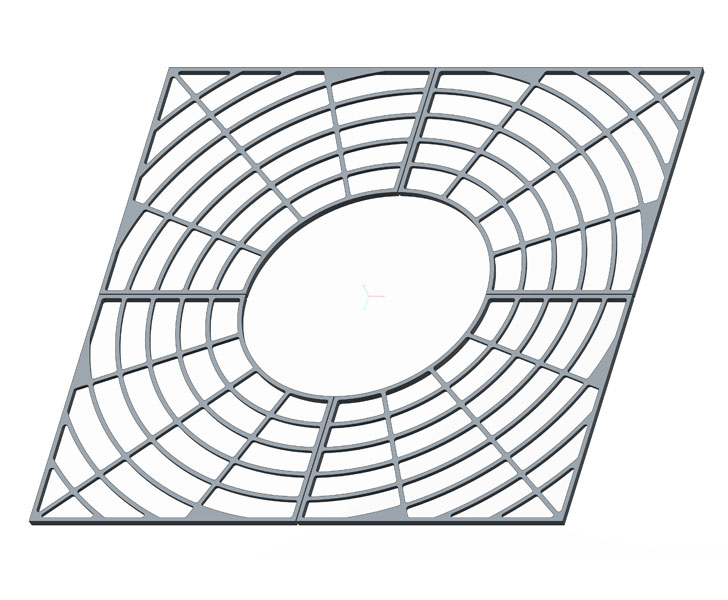

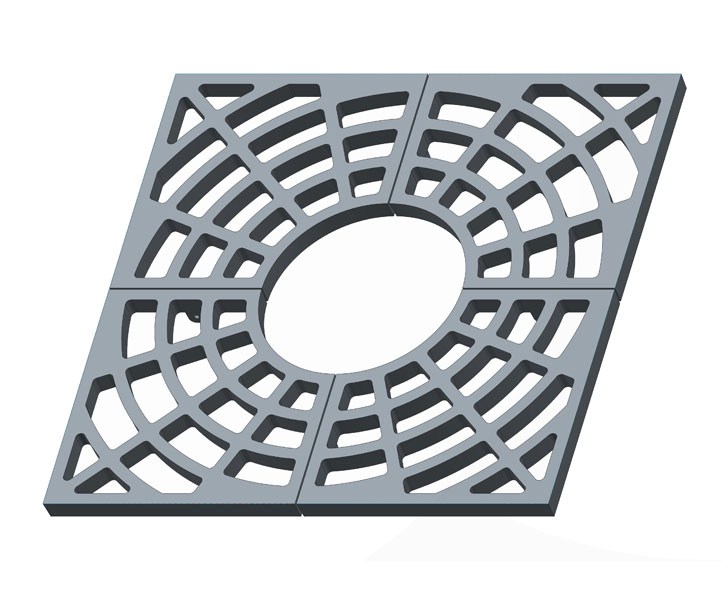

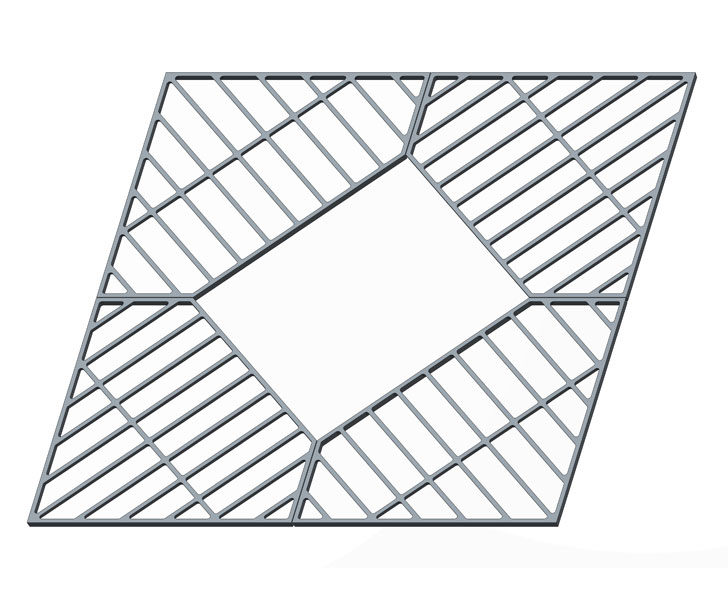

Tree Grates

  • 500 MM CLEAR OPENING TREE GRATE

  • 900 MM CLEAR OPEING TREE GRATE

  • 900 MM × 900 MM CLEAR OPEING TREE GRATE

Load Ratings AS PER BSEN124 : 2015

  • 15KN

    CLASS A 15

    The access covers and grates of this class are capable of withstanding a 15kN (~1.5 tonnes) test load which can only be used in pedestrian areas and by pedal cyclists.

  • 125KN

    CLASS B 125

    Car parks and pedestrian areas where occasional vehicular access is likely.

  • 250KN

    CLASS C 250

    The access covers and grates of this class are capable of withstanding a 250kN (~25 tonnes) test load.

  • 400KN

    CLASS D 400

    Carriageways, hardshoulders and pedestrian areas where cars and lorries have access.

  • 600KN

    CLASS E 600

    The access covers and grates of this class are capable of withstanding a 600kN (~60 tonnes) in test loading areas, docks, aircraft pavements.

  • 900KN

    CLASS F 900

    The access covers and grates of this class are capable of withstanding a 900kN (~90 tonnes) in test load areas, docks, aircraft pavements.
